Circuit Breakers 10kA “C” Curve Distribution

Circuit Breakers 10kA “C” Curve Distribution

Out of stock

Acti9 circuit breakers 10kA

Availability: Out of stock
Compare
Compare

Description

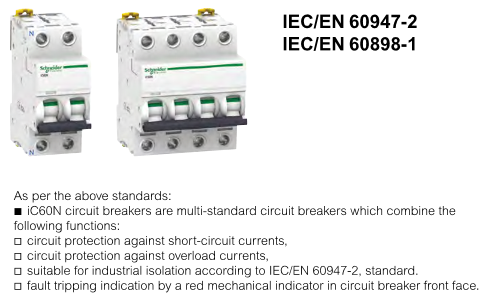

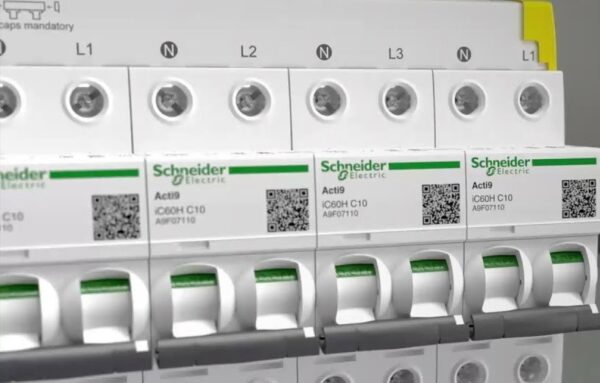

Acti 9 Din Rail Mounted Circuit Breakers

10kA  “C”  curve circuit breakers  1A – 100A    1pole – 4pole
With 21 new patents & 5 generations of experience,
Information on tripping curves: “Click Here”
List Prices Excluding VAT  MARCH 2023

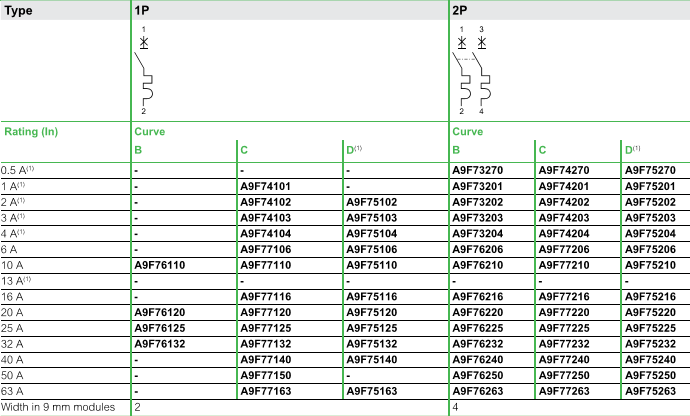

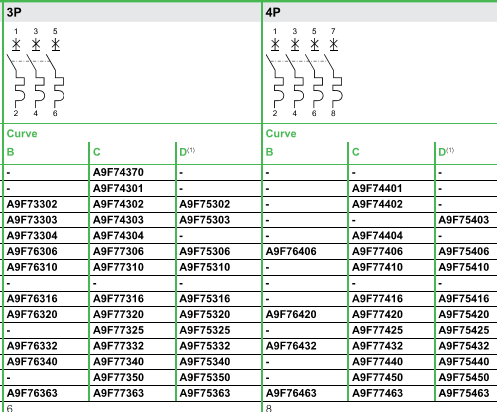

1A – 4A      1 – 4 POLE  &  6A – 63A 1 – 4 POLE
A9F74101 Acti9 iC60N 1P C 1A 230V MCB R403,02
A9F74102 Acti9 iC60N 1P C 2A 230V MCB R403,02
A9F74103 Acti9 iC60N 1P C 3A 230V MCB R403,02
A9F74104 Acti9 iC60N 1P C 4A 230V MCB R403,02
A9F74201 Acti9 iC60N 2P C 1A 440V MCB R1 153,26
A9F74202 Acti9 iC60N 2P C 2A 440V MCB R1 153,26
A9F74203 Acti9 iC60N 2P C 3A 440V MCB R1 153,26
A9F74204 Acti9 iC60N 2P C 4A 440V MCB R1 153,26
A9F74301 Acti9 iC60N 3P C 1A 440V MCB R3 066,81
A9F74302 Acti9 iC60N 3P C 2A 440V MCB R1 459,90
A9F74303 Acti9 iC60N 3P C 3A MCB R1 459,90
A9F74304 Acti9 iC60N 3P C 4A 440V MCB R1 459,90
A9F74401 Acti9 iC60N 4P C 1A MCB R1 849,15
A9F74402 Acti9 iC60N 4P C 2A MCB R1 849,15
A9F74403 Acti9 iC60N 4P C 3A MCB R1 849,15
A9F74404 Acti9 iC60N 4P C 4A MCB R1 849,15
6A – 63A      1 – 4 POLE
A9F77106 Acti9 iC60N 1P C 6A MCB R282,24
A9F77110 Acti9 iC60N 1P C 10A MCB R282,24
A9F77116 Acti9 iC60N 1P C 16A MCB R282,24
A9F77120 Acti9 iC60N 1P C 20A MCB R282,24
A9F77125 Acti9 iC60N 1P C 25A MCB R291,98
A9F77132 Acti9 iC60N 1P C 32A MCB R291,98
A9F77140 Acti9 iC60N 1P C 40A MCB R291,98
A9F77150 Acti9 iC60N 1P C 50A MCB R330,93
A9F77163 Acti9 iC60N 1P C 63A MCB R330,93
A9F77206 Acti9 iC60N 2P C 6A MCB R939,21
A9F77210 Acti9 iC60N 2P C 10A MCB R939,21
A9F77216 Acti9 iC60N 2P C 16A MCB R939,21
A9F77220 Acti9 iC60N 2P C 20A MCB R939,21
A9F77225 Acti9 iC60N 2P C 25A MCB R1 075,46
A9F77232 Acti9 iC60N 2P C 32A MCB R1 075,46
A9F77240 Acti9 iC60N 2P C 40A MCB R1 075,46
A9F77250 Acti9 iC60N 2P C 50A MCB R1 143,61
A9F77263 Acti9 iC60N 2P C 63A MCB R1 143,61
A9F77306 Acti9 iC60N 3P C 6A MCB R1 406,34
A9F77310 Acti9 iC60N 3P C 10A MCB R1 406,34
A9F77316 Acti9 iC60N 3P C 16A MCB R1 406,34
A9F77320 Acti9 iC60N 3P C 20A MCB R1 406,34
A9F77325 Acti9 iC60N 3P C 25A MCB R1 420,93
A9F77332 Acti9 iC60N 3P C 32A MCB R1 420,93
A9F77340 Acti9 iC60N 3P C 40A MCB R1 420,93
A9F77350 Acti9 iC60N 3P C 50A MCB R1 445,20
A9F77363 Acti9 iC60N 3P C 63A MCB R1 445,20
A9F77406 Acti9 iC60N 4P C 6A MCB R1 450,13
A9F77410 Acti9 iC60N 4P C 10A MCB R1 450,13
A9F77416 Acti9 iC60N 4P C 16A MCB R1 450,13
A9F77420 Acti9 iC60N 4P C 20A MCB R1 450,13
A9F77425 Acti9 iC60N 4P C 25A MCB R1 537,69
A9F77432 Acti9 iC60N 4P C 32A MCB R1 537,69
A9F77440 Acti9 iC60N 4P C 40A MCB R1 537,69
A9F77450 Acti9 iC60N 4P C 50A MCB R1 569,30
A9F77463 Acti9 iC60N 4P C 63A MCB R1 569,30

Contact us for trade discounts
